Machine characteristic

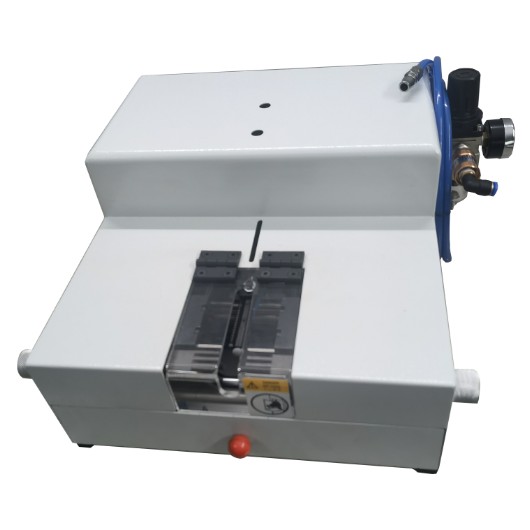

Depending on the product's wire specifications, the requirements for insulation stripping vary. We have developed the following wire stripping machines and stripping torsion machines, featuring lightweight bodies and easy adjustment, primarily designed for removing insulation from inner core wires in AC/DC/multicore applications.
Product Specifications
type | JC-100 Semi-Stripping Twisted Wire Machine | JC-150 Thermal Peeling Machine | JC-3F Core-Removal Wire Machine | JC-4F Core-Removing Wire Machine | JC-3FN Core-剥离 Wire Twisting Machine | JC-C30 Tangent Machine |
route or distance of travel | 3~15mm | 50mm | 30mm | 30mm | 30mm | 50mm |
Stripping capability | NO | 18~32AWG(2~8PCS) | 18~32AWG (2~8PCS) | 14~32AWG(2~8PCS) | 18~32AWG(2~8PCS) | Applicable to cables with a diameter below 25 mm |
Peeling length | NO | 1.2~20mm | 1.2~20mm | 1.2~20mm | 4~10mm | NO |
Twist function | YES | NO | NO | NO | YES | NO |
voltage | AC220V/50Hz |
pressure | NO | 3-7 kg/cm2 |
Output | 10kg | 84-196kg | 31-73kg | 49-115kg | 31-73kg | 350kg |
Cylinder | | ￠63 | ￠40 | ￠50 | ￠40 | ￠100 |
weight | 12kg | 18kg | 12kg | 15kg | 12kg | 21kg |
specifications | 120*140*140mm | 260*180*380mm | 260*150*270mm | 260*150*330mm | 260*150*270mm | 160*150*290mm |
