We are a manufacturer specializing in R&D, production, and sales of wire harness processing equipment. We provide supporting machinery for companies working with electronic connectors, wire harnesses, automotive connectors, new energy cables, and other wire products.
Product Category
-

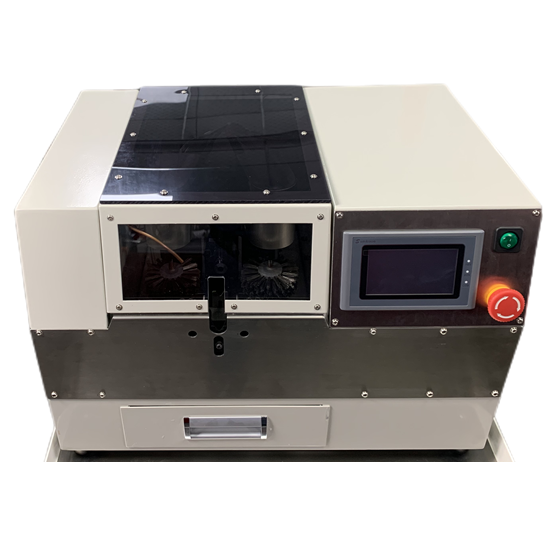

The Brush-Cutting Woven Machine is an automated equipment designed for length-specific cutting of shielding braids in shielded cables (data cables). Operating on pneumatic-electrical principles, it first disperses the shielding layer using brushes, then reverses the material flow, and finally cuts it with precision blades. Featuring reversible brush orientation and adjustable speed settings, the machine employs imported steel blades to ensure cutting accuracy. Controlled by a high-definition touchscreen with built-in safety features, it offers user-friendly operation through foot-operated switches. A dedicated waste collection bin prevents material splatter, ensuring environmental cleanliness while maintaining low operational noise. Ideal for processing fast-charging cables, shielded Ethernet cables, and signal transmission shielding systems. -

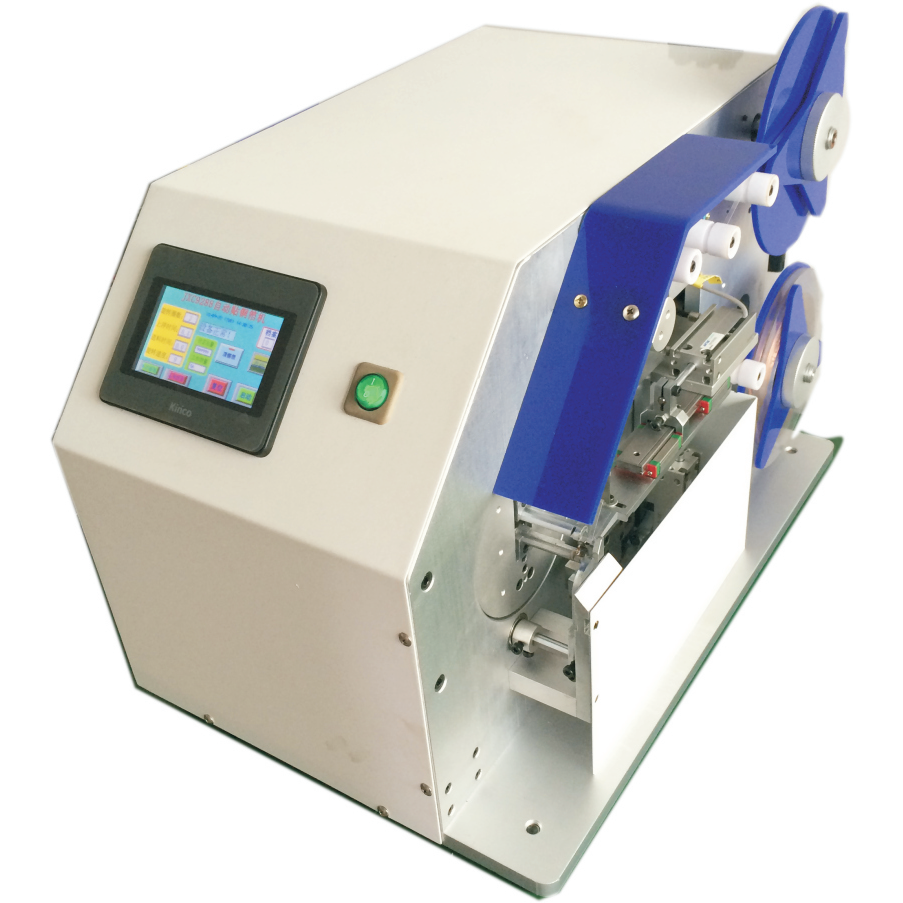

1. Standard machine numbers: OD2.6–OD5.8
2. Customized model: OD2.6–OD8.0
3. Copper foil width: 3.0-10.0 mm
4. Work efficiency: 1200-1500 PCS/H
5. Copper foil length: adjustable for 1–2 turns
6. Application scope: Copper foil cladding, conductive fabric cladding
7. Power supply: 220V/50Hz
8. Dimensions: 500mm x 420mm x 350mm
