Machine characteristic
Depending on the product's wire specifications, the requirements for insulation stripping vary. We have developed the following wire stripping machines and stripping torsion machines, featuring lightweight bodies and easy adjustment, primarily designed for removing insulation from inner core wires in AC/DC/multicore applications.
Product Specifications

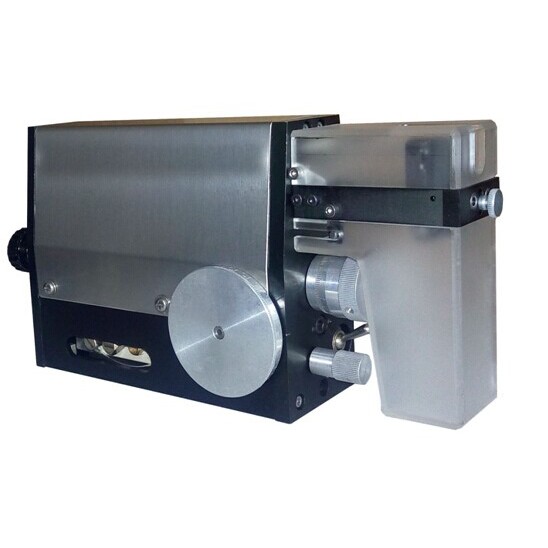

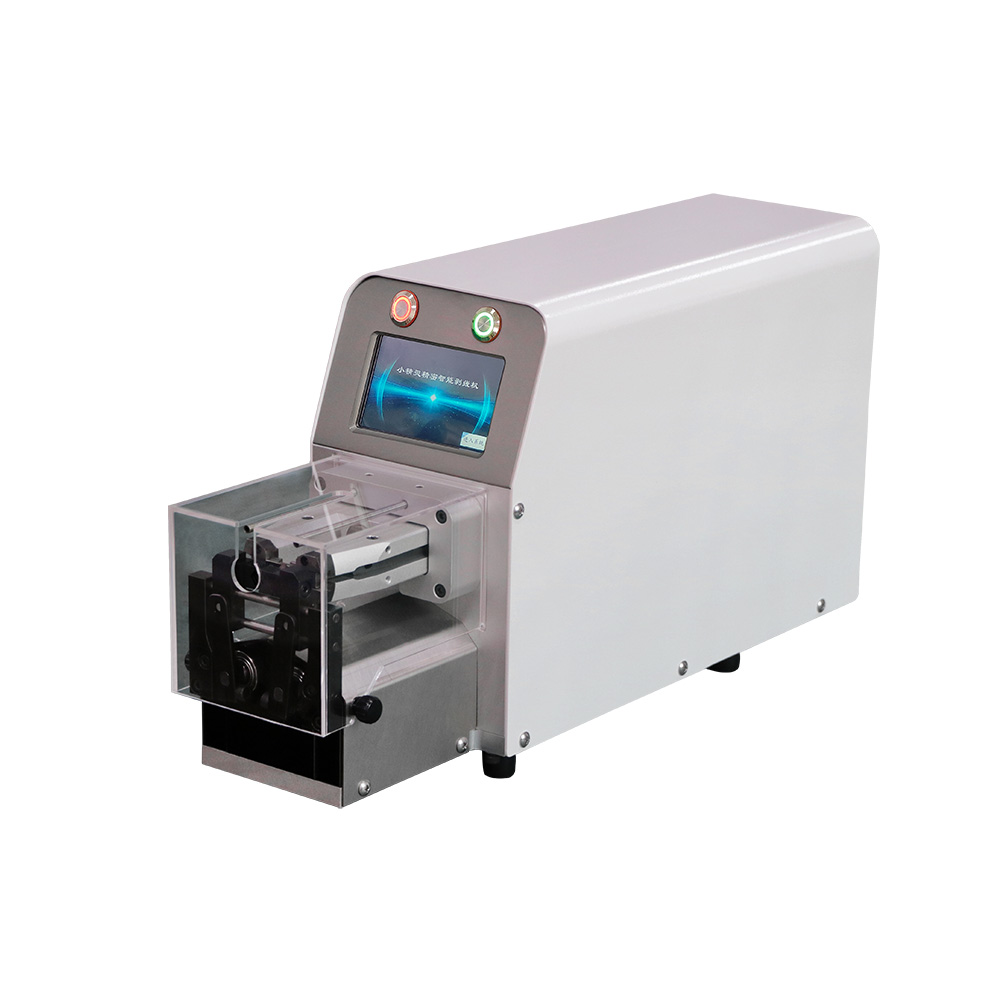

name of a part | Rotary skin removal machine | Pneumatic Induction Peeling Machine | Electric Induction Stripping Machine | Knife-free peeling machine |
model | JC-X1025 | JC-Q2015 | JC-DB0745 | JC-MT305 |
route or distance of travel | Multiple models available in 0–200mm range | 0~20mm | 0-45mm | 2–50 mm (fully peeled) |
Stripping capability | diameter 10~25mm | AWG32-12(0.03-4MM) | 0.5-7mm | 0.5-10mm² |
Peeling length | 0~200mm | 1.2~20mm | 0-45mm | 2–50 mm (fully peeled) |
Twist function | NO | NO | NO | NO |
