Model | JC-AFT01 Automatic Wire Harness Terminal Machine |
Power | AC220V 50/60HZ (single-phase) |

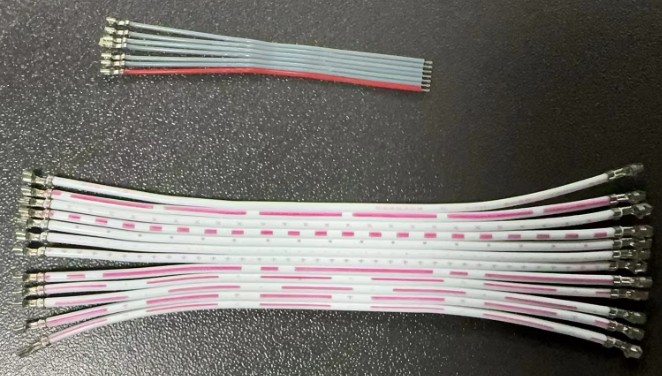

Function | Red/white strip, blue/white strip, gray strip, color line |
Processing Capacity | 16,000 pieces per hour (MAX) |
Processable wire range | AWG2468 #18-#30 (2~20PIN) |
Cut length | 60mm-1000mm (customizable length extension available) |
Cut-off Precision | Change range: 0.2 + cutting length * 0.02% or less |
Stripping length | Imm-6mm |
Press Capacity | 2 tons 2 tons |
Control mode | PLC step operation function |
Air Pressure: Air Pressure | 4–6 kgf [Clean, dry air is required]) |
Detection devices | Detect presence of wires; Detect wire tightness; Detect abnormal skin peeling under pressure; Detect pressure drop |
Mechanical dimensions | 1850WX760LX1830H(mm) |
Mechanical weight | Approximately 340 kg |
