model ：Model | JC-AT02 |
source ：Power | AC220V 50/60HZ (single-phase) |

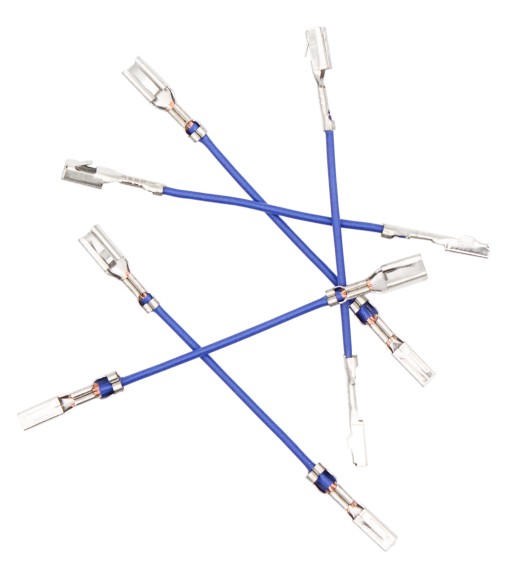

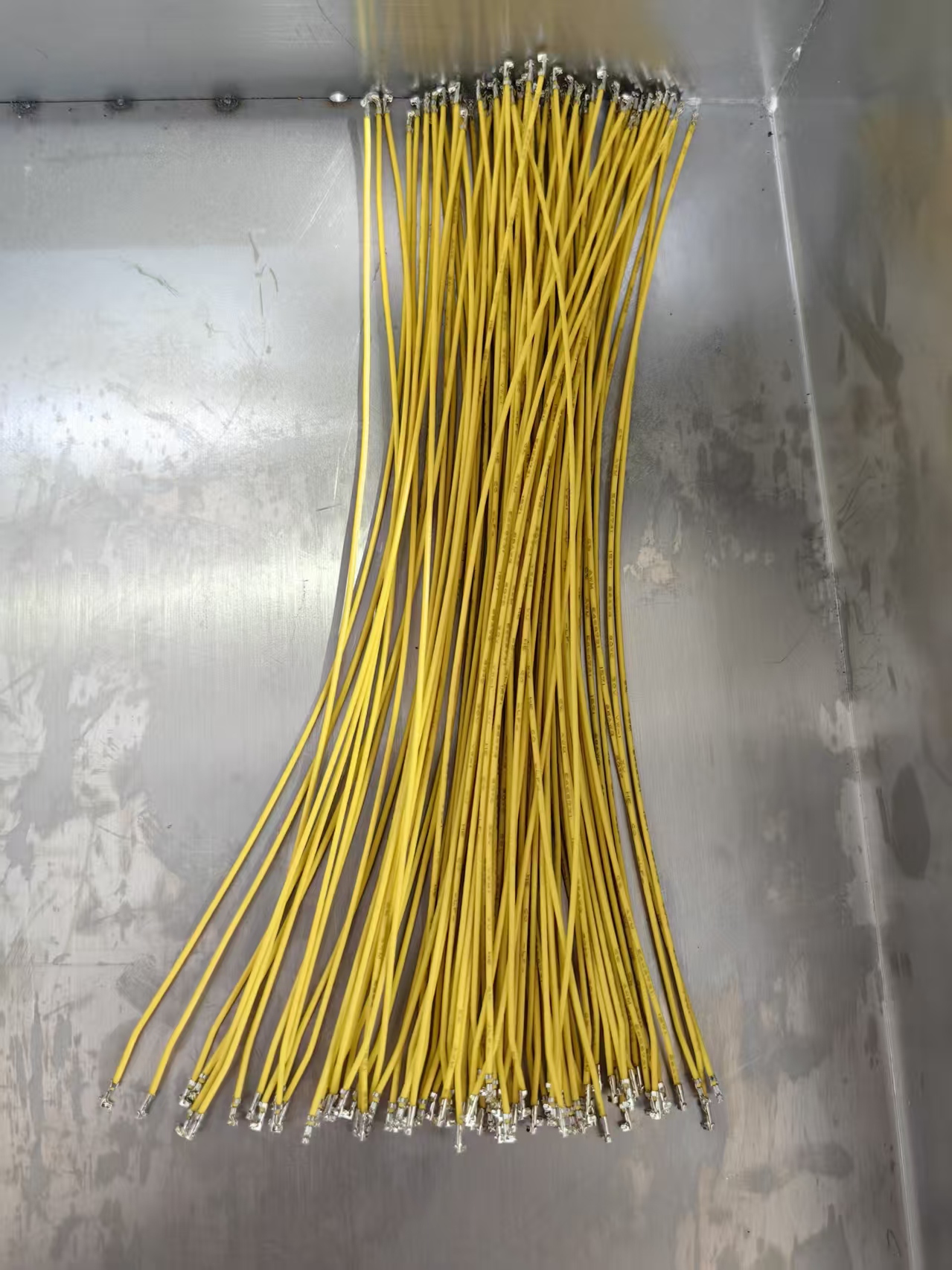

Function: Function | The computer controls the peeling and pressing processes at both ends, with automatic fiber optic detection of pressing effectiveness: |
Processing Capacity: | 4000 pieces/hour (length within 100mm) |
Processable wire range: xApplicable wire range | AWG#30-AWG#18 |
Cut length: Wire length | 40mm-9999mm， |
Cut-off Precision | Change range: below 0.02% of the cut length |
Stripping length: Stripping length | 0. Imm-10mm |
Press Capacity | 2 tons 2 tons |
Control method | Step Operation Function |
Air Pressure: Air Pressure | 4–6 kgf [uses clean, dry air] 2–6 kgf |
Detection devices: Detecting devices | Detect wire presence, check wire tightness, monitor pressure, detect skinning abnormalities, and identify pressure drop |
Mechanical dimensions: Me'asurement | 800WX830LX1530H(mm) |
Mechanical weight: Weight | Approximately 280 kg |
