Machine features:
1、The machine utilizes original imported electrical components and can perform wire cutting/peeling at both ends (full or partial peeling); crimping terminals with rain plugs at both ends or single end.
2. Four processes can be completed in one operation, featuring simple operation and stable performance.
3. Gas-electric working principle
4. The full skinning length/diameter adjustment is directly set via the Chinese menu panel of the touch switch.
model ：Model | JC-SS02 Fully Automatic Rain Stopper Machine-Dual Pressure Dual Piercing |
source ：Power | AWG16-30# 1007 single-core electronic wire |

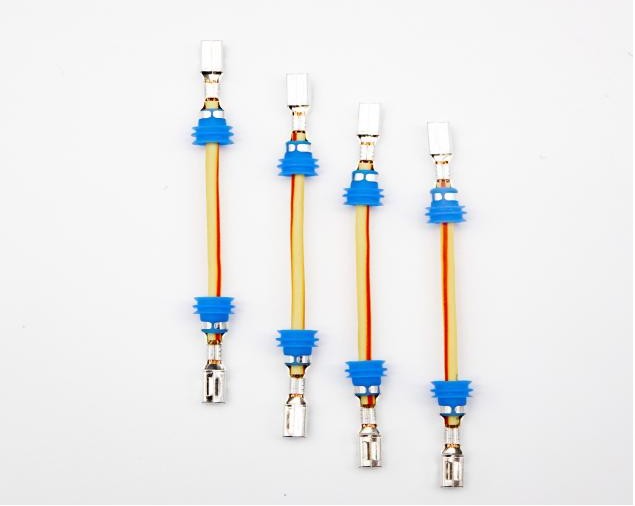

Function: Function | Automatic wire cutting, stripping, double-ended rain plug insertion, and double-ended terminal crimping |
Processing Capacity: | Up to 300mm in diameter, production rate of 1100-1400 pieces per hour |
Processable wire range: Applicable wire range | AWG16-30# 1007 single-core electronic wire |
Cut length: Wire length | 60-9900MM |
Cut-off Precision | 0.5 +L*0.2%mm |
Stripping length: Stripping length | 0-25MM |
Press Capacity | Standard 2T30 stroke (optional 3T) / (optional 40 stroke) |
Air Pressure: Air Pressure | A Air：0.4-0.6MPa |
Detection devices: Detecting devices | Terminal detection includes waterproof plug detection, pneumatic pressure detection, and wire material detection. Fault alarm includes pressure monitoring (optional) |
Mechanical dimensions: Me'asurement | Dimensions: 1300 mm (length) × 800 mm (width) × 1600 mm (height) |
Mechanical weight: Weight | 500Kg |
