Model | JC-AT10+T |
Power | AC220V 50/60HZ (single-phase) |

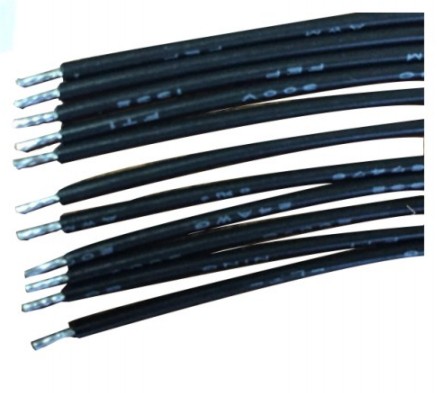

Function | Cut the wires to the required lengths, and if necessary, strip the insulation from both ends or one end and tin them. |
Processing Capacity: | 10,000 pieces/hour (length within 100mm) |
Processable wire range | AWG#30-AWG#14 |
Cut length | 15mm-1000mm (15mm custom) |
Cut-off Precision | Change range: 0.2 + cutting length * 0.02% or less |
Stripping length | Ideal range: 0.1 mm to 15 mm |
Twisting length | 2-10mm |
Control mode | PLC step operation function |
Air Pressure | 4–6 kgf [Clean, dry air is required]) |
Detection devices | Detect presence of wire detection and pressure drop detection |
Auxiliary devices | Automatic soldering device |
Mechanical dimensions | Length 2100mm Width 800mm Height 1550mm |
Mechanical weight | Approximately 225 kg |
